CMC 22UH 200MA 2LN SMD AEC-Q200

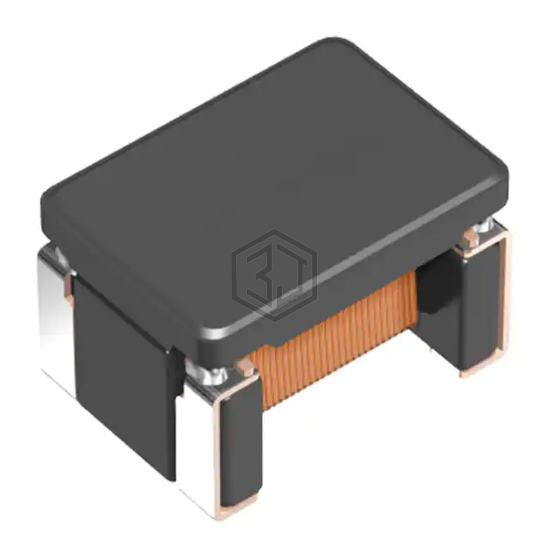

ACT45B-220-2P-TL003 is a Common Mode Chokes manufactured by TDK Corporation. CMC 22UH 200MA 2LN SMD AEC-Q200. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, voltage rating - dc 50V, package / case Horizontal, 4 PC Pad.
In Stock: 41,593
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 1.2 kOhms @ 10 MHz |
| Inductance @ Frequency | 22 µH @ 100 kHz |
| Current Rating (Max) | 200mA |
| DC Resistance (DCR) (Max) | 1Ohm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 150°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height (Max) | 0.118" (3.00mm) |
| Package / Case | Horizontal, 4 PC Pad |
Submit your RFQ for ACT45B-220-2P-TL003 and get a quote within 24 hours.
