CMC 1.4A 2LN 420OHM SMD AEC-Q200

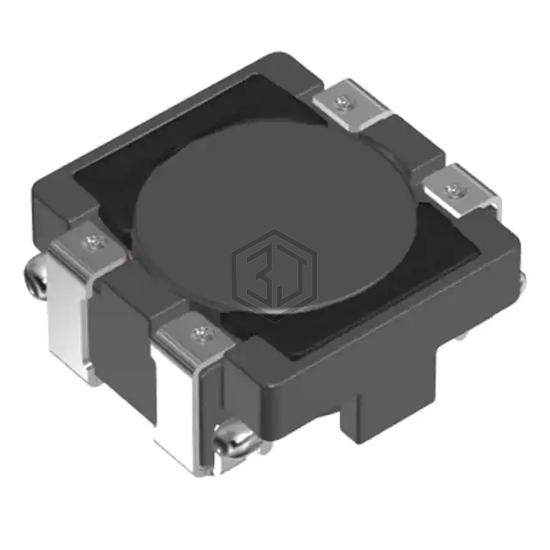

ACM4520V-421-2P-TL00 is a Common Mode Chokes manufactured by TDK Corporation. CMC 1.4A 2LN 420OHM SMD AEC-Q200. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage rating - dc 50V, package / case Horizontal, 4 PC Pad.
In Stock: 4,731
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 420 Ohms @ 100 MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 1.4A |
| DC Resistance (DCR) (Max) | 55mOhm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.185" L x 0.177" W (4.70mm x 4.50mm) |
| Height (Max) | 0.079" (2.00mm) |
| Package / Case | Horizontal, 4 PC Pad |
Submit your RFQ for ACM4520V-421-2P-TL00 and get a quote within 24 hours.
