CMC 150MA 3LN 800 OHM SMD

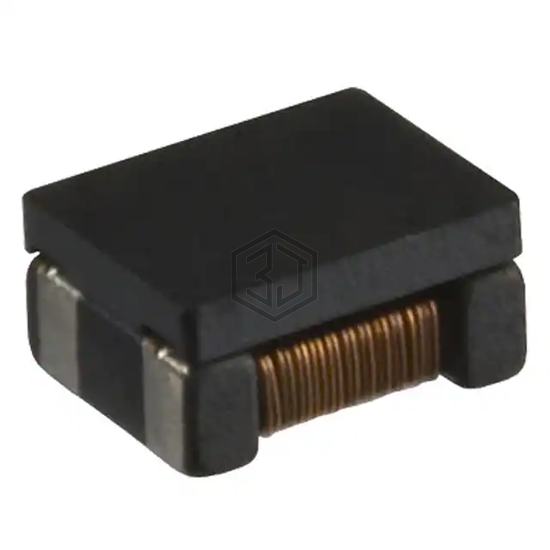

ACM2520-801-3P-T002 is a Common Mode Chokes manufactured by TDK Corporation. CMC 150MA 3LN 800 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage rating - dc 20V, package / case Horizontal, 6 PC Pad.
In Stock: 45,928
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Signal Line |
| Number of Lines | 3 |
| Impedance @ Frequency | 800 Ohms @ 100 MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 150mA |
| DC Resistance (DCR) (Max) | 1.6Ohm |
| Voltage Rating - DC | 20V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height (Max) | 0.051" (1.30mm) |
| Package / Case | Horizontal, 6 PC Pad |
Submit your RFQ for ACM2520-801-3P-T002 and get a quote within 24 hours.
