CMC 8A 2LN 700 OHM SMD AEC-Q200

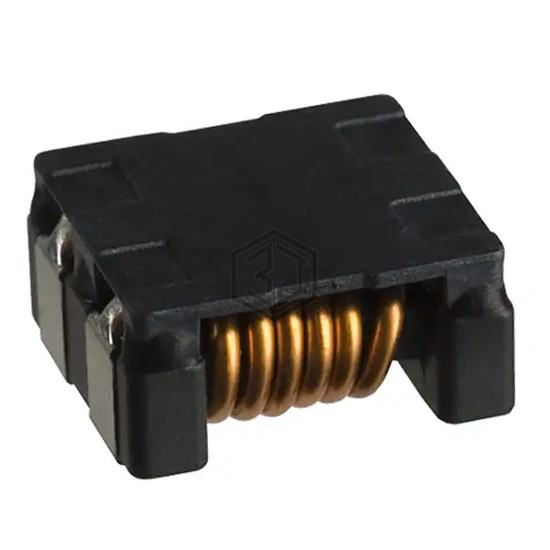

ACM12V-701-2PL-TL00 is a Common Mode Chokes manufactured by TDK Corporation. CMC 8A 2LN 700 OHM SMD AEC-Q200. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage rating - dc 80V, package / case Horizontal, 4 J-Lead.
In Stock: 27,162
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | 700 Ohms @ 100 MHz |
| Inductance @ Frequency | - |
| Current Rating (Max) | 8A |
| DC Resistance (DCR) (Max) | 6mOhm |
| Voltage Rating - DC | 80V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.472" L x 0.433" W (12.00mm x 11.00mm) |
| Height (Max) | 0.236" (6.00mm) |
| Package / Case | Horizontal, 4 J-Lead |
Submit your RFQ for ACM12V-701-2PL-TL00 and get a quote within 24 hours.
