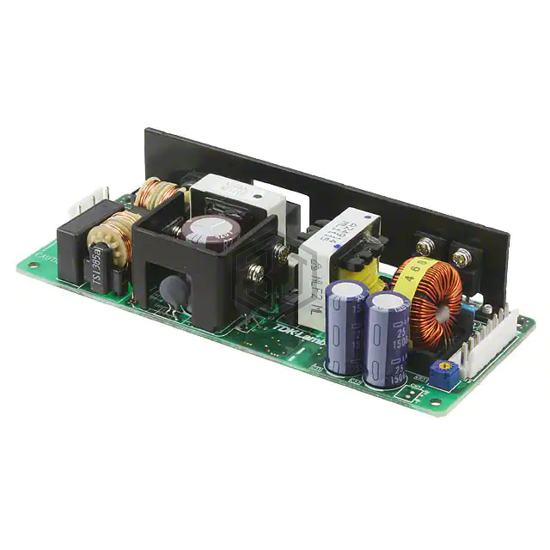

AC/DC CONVERTER 12V 100W
ZWS100BAF-12/L is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 12V 100W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 70°C (With Derating), voltage - input 85 ~ 265 VAC, size / dimension 6.10" L x 2.44" W x 1.30" H (155.0mm x 62.0mm x 33.0mm).
In Stock: 5,146
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 8.5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 100W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 88% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.10" L x 2.44" W x 1.30" H (155.0mm x 62.0mm x 33.0mm) |
| Approval Agency | CE |
| Standard Number | - |
