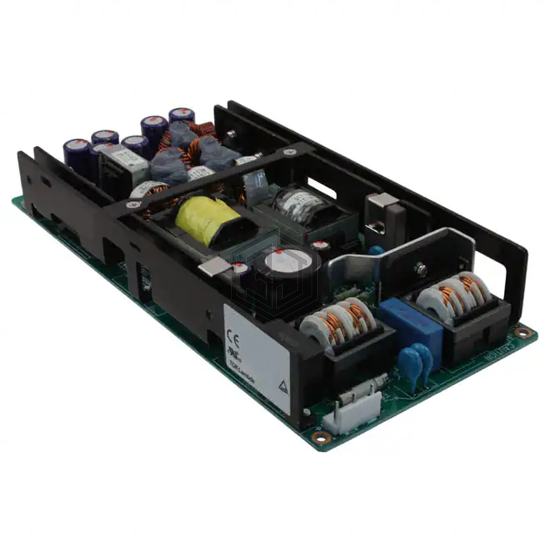

AC/DC CNVRTR 5V +/-12V 5V 130W
ZWQ130-5225 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CNVRTR 5V +/-12V 5V 130W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 60°C (With Derating), voltage - input 85 ~ 265 VAC, size / dimension 8.86" L x 4.17" W x 1.38" H (225.0mm x 106.0mm x 35.0mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 4 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | 5V |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 15 A |
| Current - Output 2 | 4 A |
| Current - Output 3 | 4 A |
| Current - Output 4 | 10 A |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 130W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 72% |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.86" L x 4.17" W x 1.38" H (225.0mm x 106.0mm x 35.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for ZWQ130-5225 and get a quote within 24 hours.
