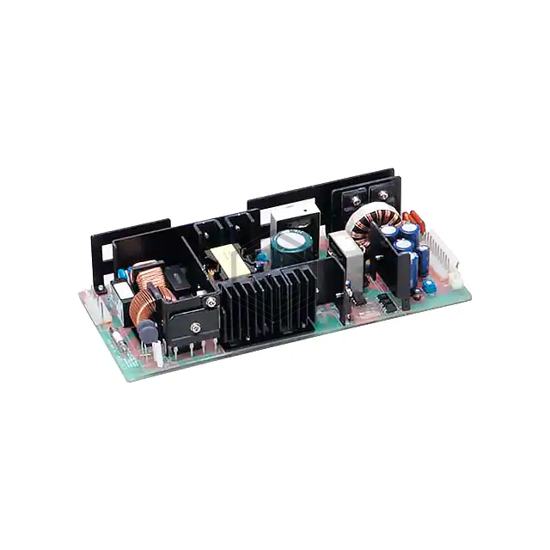

AC/DC CONVERTER 5V 24V 225W
ZWD225PAF-0524/J is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 5V 24V 225W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 70°C (With Derating), voltage - input 85 ~ 265 VAC, size / dimension 8.74" L x 3.74" W x 1.77" H (222.0mm x 95.0mm x 45.0mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 2 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 24V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | 9 A |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 225W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 81% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.74" L x 3.74" W x 1.77" H (222.0mm x 95.0mm x 45.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for ZWD225PAF-0524/J and get a quote within 24 hours.
