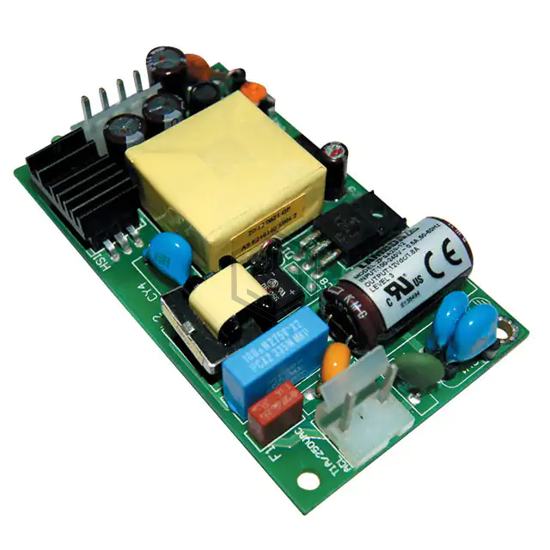

AC/DC CONVERTER 9V 20W
ZPSA20-9 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 9V 20W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C, voltage - input 85 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 3.50" L x 2.00" W x 0.79" H (88.9mm x 50.8mm x 20.0mm).
In Stock: 34
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2.45 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 20W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 82% |
| Operating Temperature | 0°C ~ 70°C |
| Features | DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.50" L x 2.00" W x 0.79" H (88.9mm x 50.8mm x 20.0mm) |
| Approval Agency | CE |
| Standard Number | - |
