AC/DC CONVERTER 12V 250W

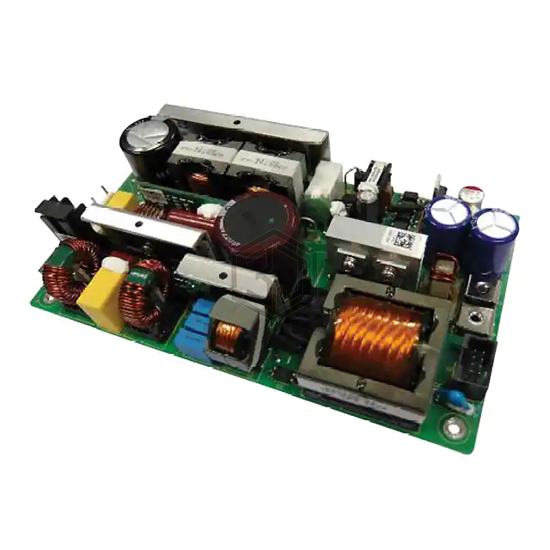

XMS5001M is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 12V 250W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 7.10" L x 4.00" W x 1.46" H (180.0mm x 102.0mm x 37.0mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 41.6 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 250W (500W Forced Air) |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 92% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.10" L x 4.00" W x 1.46" H (180.0mm x 102.0mm x 37.0mm) |
| Approval Agency | - |
| Standard Number | - |
