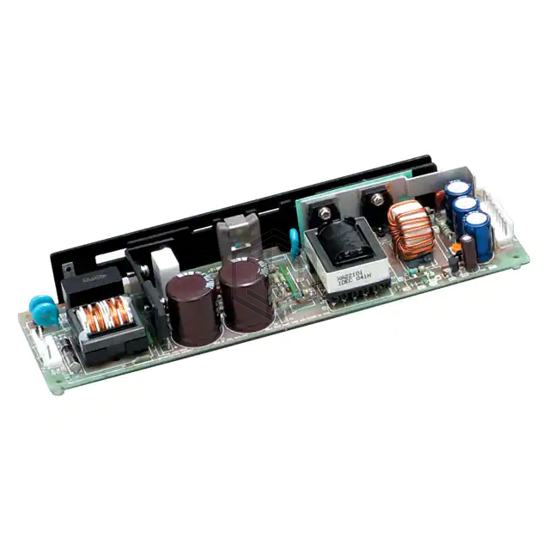

AC/DC CONVERTER 36V 30W
VS30C-36 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 36V 30W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 70°C (With Derating), voltage - input 85 ~ 132 VAC, 110 ~ 175 VDC, size / dimension 5.22" L x 1.97" W x 0.98" H (132.5mm x 50.0mm x 25.0mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 132 VAC, 110 ~ 175 VDC |
| Voltage - Output 1 | 36V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 900 mA |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 30W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 2 kV |
| Efficiency | 80% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.22" L x 1.97" W x 0.98" H (132.5mm x 50.0mm x 25.0mm) |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for VS30C-36 and get a quote within 24 hours.
