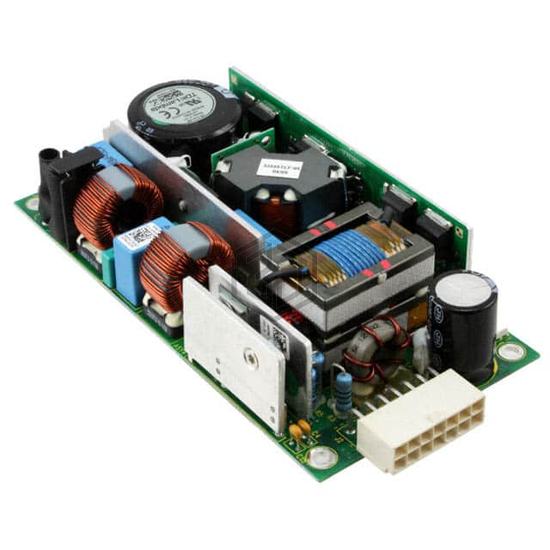

AC/DC CONVERTER 12V 400W
U4Y002H is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 12V 400W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 6.00" L x 3.00" W x 1.34" H (152.4mm x 76.2mm x 34.0mm).
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 33.3 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 400W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4.3 kV |
| Efficiency | 90% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | PFC, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.00" L x 3.00" W x 1.34" H (152.4mm x 76.2mm x 34.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for U4Y002H and get a quote within 24 hours.
