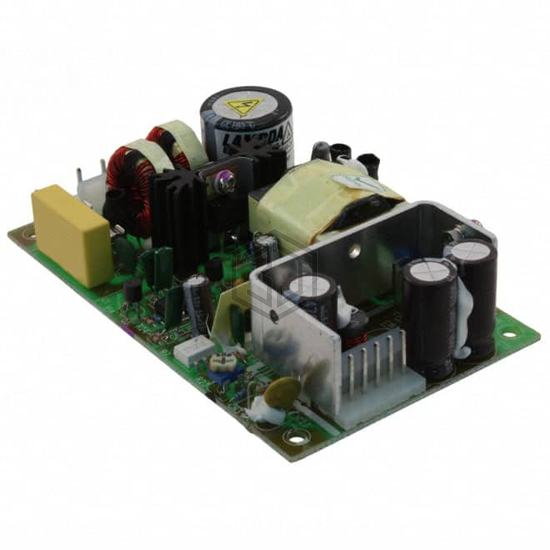

AC/DC CONVERTER 5V 24V 12V 40W
SCT47 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 5V 24V 12V 40W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 85 ~ 265 VAC, size / dimension 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm).
In Stock: 23
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Open Frame |
| Number of Outputs | 3 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 24V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4 A |
| Current - Output 2 | 1 A |
| Current - Output 3 | 500 mA |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 40W (55W Forced Air) |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4.3 kV |
| Efficiency | 70% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for SCT47 and get a quote within 24 hours.
