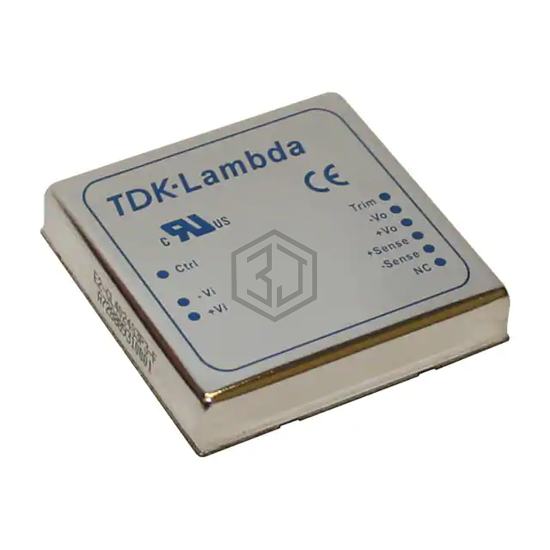

DC DC CONVERTER 5V +/-12V 40W
PXF40-12T0512 is a DC DC Converters manufactured by TDK-Lambda Americas Inc. DC DC CONVERTER 5V +/-12V 40W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case 9-DIP Module, current - output (max) 6A, 400mA, 400mA.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 3 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A, 400mA, 400mA |
| Power (Watts) | 40 W |
| Voltage - Isolation | 1.6 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 85% |
| Mounting Type | Through Hole |
| Package / Case | 9-DIP Module |
| Size / Dimension | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 8.6mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for PXF40-12T0512 and get a quote within 24 hours.
