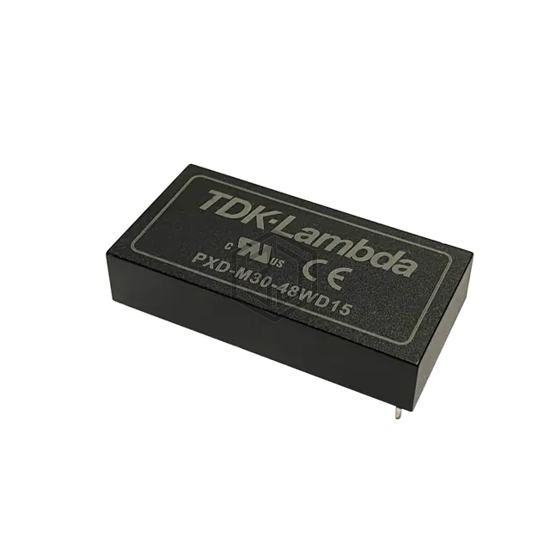

DC DC CONVERTER +/-15V 30W
PXD-M30-48WD15 is a DC DC Converters manufactured by TDK-Lambda Americas Inc. DC DC CONVERTER +/-15V 30W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 6-DIP Module, current - output (max) 1A, 1A.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A, 1A |
| Power (Watts) | 30 W |
| Voltage - Isolation | 5 kV |
| Applications | ITE (Commercial), Medical |
| Features | Adjustable Output |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 89.5% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for PXD-M30-48WD15 and get a quote within 24 hours.
