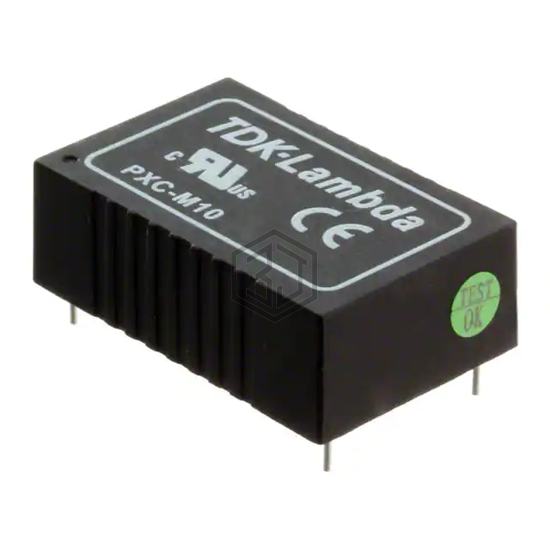

DC DC CONVERTER 12V 10W
PXC-M10-48WS12-A is a DC DC Converters manufactured by TDK-Lambda Americas Inc. DC DC CONVERTER 12V 10W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case 24-DIP Module, 5 Leads, current - output (max) 830mA.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 830mA |
| Power (Watts) | 10 W |
| Voltage - Isolation | 5 kV |
| Applications | Medical |
| Features | OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 89% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 5 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for PXC-M10-48WS12-A and get a quote within 24 hours.
