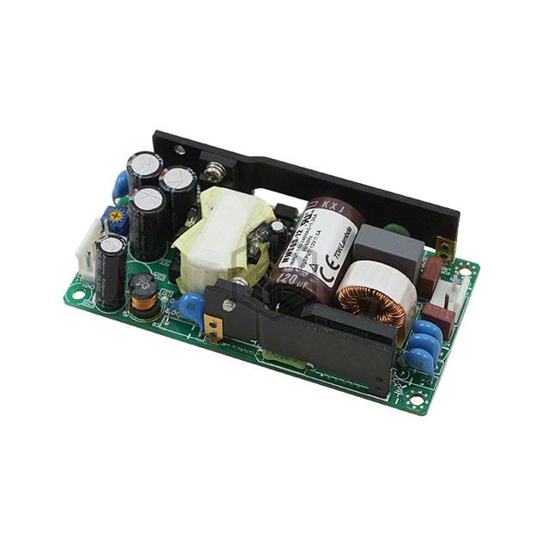

AC/DC CONVERTER 12V 60W
MWS65-12 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 12V 60W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C, voltage - input 85 ~ 265 VAC, size / dimension 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 60W |
| Applications | Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 84% |
| Operating Temperature | -20°C ~ 70°C |
| Features | Adjustable Output, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for MWS65-12 and get a quote within 24 hours.
