AC/DC CONVERTER 24V 1500W

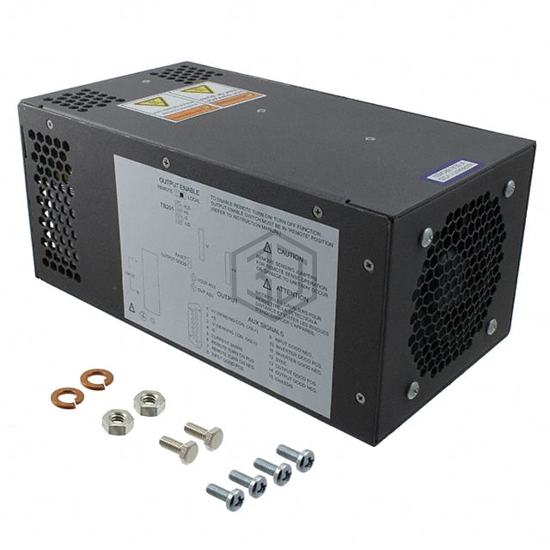

LZSA-1500-3-001 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 24V 1500W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 71°C (With Derating), voltage - input 85 ~ 265 VAC, size / dimension 10.50" L x 5.62" W x 4.75" H (266.7mm x 142.7mm x 120.7mm).
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed, Conformal Coated |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 63 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 1500W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 84% |
| Operating Temperature | -40°C ~ 71°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 10.50" L x 5.62" W x 4.75" H (266.7mm x 142.7mm x 120.7mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for LZSA-1500-3-001 and get a quote within 24 hours.
