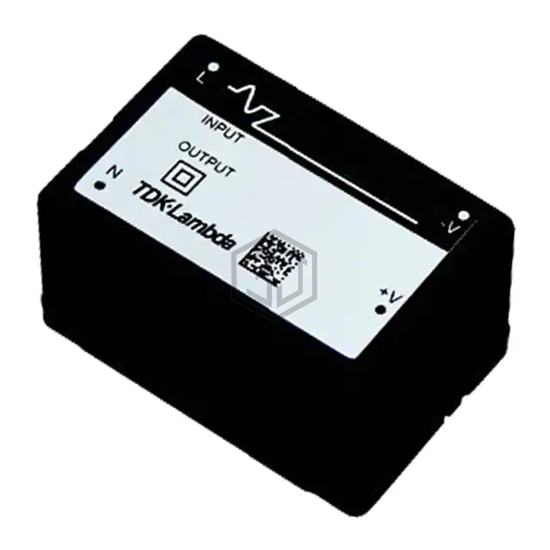

AC/DC CONVERTER 15V 5W
KWS5A-15 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 15V 5W. Key specifications: mounting type Through Hole, operating temperature -10°C ~ 85°C (With Derating), voltage - input 85 ~ 265 VAC, 120 ~ 370 VDC, package / case 4-DIP Module.
In Stock: 5,721
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 265 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 350mA |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | Universal Input |
| Operating Temperature | -10°C ~ 85°C (With Derating) |
| Efficiency | 75% |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP Module |
| Size / Dimension | 1.50" L x 1.00" W x 0.85" H (38.1mm x 25.4mm x 21.5mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for KWS5A-15 and get a quote within 24 hours.
