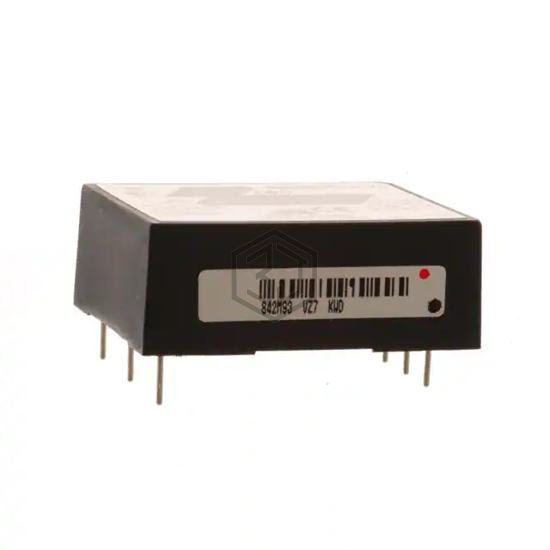

AC/DC CONVERTER 12V 15W
KWS15-12 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 12V 15W. Key specifications: mounting type Through Hole, operating temperature -10°C ~ 70°C (With Derating), voltage - input 85 ~ 265 VAC, package / case 5-DIP Module.
In Stock: 149
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.3A |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | Universal Input |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Efficiency | 76% |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 2.75" L x 1.89" W x 0.93" H (70.0mm x 48.0mm x 23.5mm) |
| Approval Agency | CE, CSA, TUV, UL |
| Standard Number | - |
