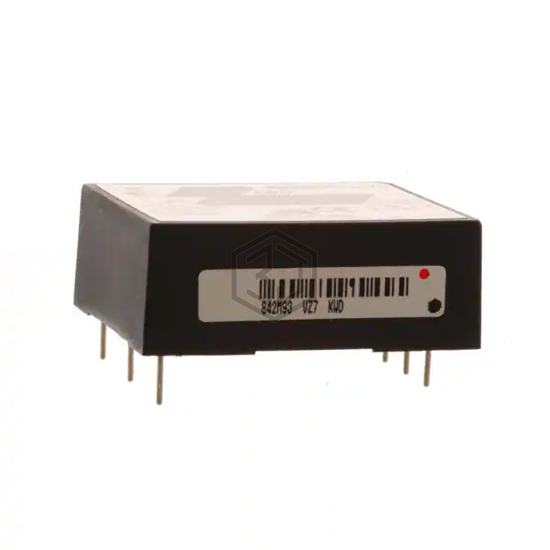

AC/DC CONVERTER +/-15V 5W
KWD5-1515 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER +/-15V 5W. Key specifications: mounting type Through Hole, operating temperature -10°C ~ 70°C (With Derating), voltage - input 85 ~ 265 VAC, package / case 6-DIP Module.
In Stock: 3,401
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Enclosed |
| Number of Outputs | 2 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 180mA, 180mA |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | Universal Input |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Efficiency | 73% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.16" L x 1.77" W x 0.81" H (54.9mm x 45.0mm x 20.5mm) |
| Approval Agency | CE, CSA, TUV, UL |
| Standard Number | - |
Submit your RFQ for KWD5-1515 and get a quote within 24 hours.
