AC/DC CONVERTER +/-15V 15W

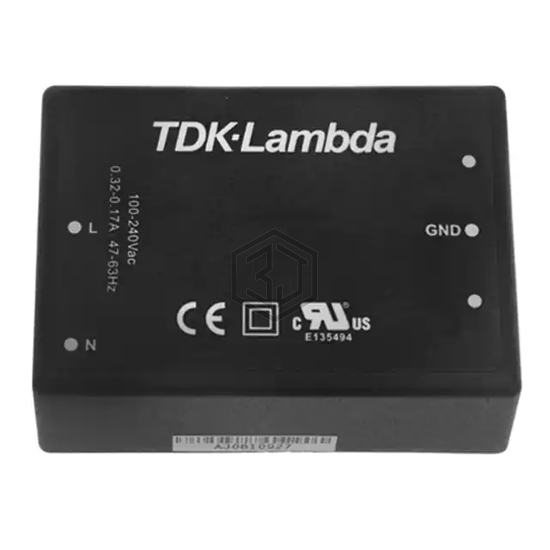

KMD15-1515 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER +/-15V 15W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 100 ~ 375 VDC, package / case 9-DIP Module, 5 Leads.
In Stock: 7,828
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Enclosed |
| Number of Outputs | 2 |
| Voltage - Input | 90 ~ 264 VAC, 100 ~ 375 VDC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA, 500mA |
| Power (Watts) | 15 W |
| Applications | Medical |
| Features | Universal Input |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Efficiency | 81% |
| Mounting Type | Through Hole |
| Package / Case | 9-DIP Module, 5 Leads |
| Size / Dimension | 2.52" L x 1.80" W x 0.93" H (64.0mm x 45.6mm x 23.5mm) |
| Approval Agency | CE, EN, IEC, UL |
| Standard Number | 60601-1; 60950-1; 62368-1 |
