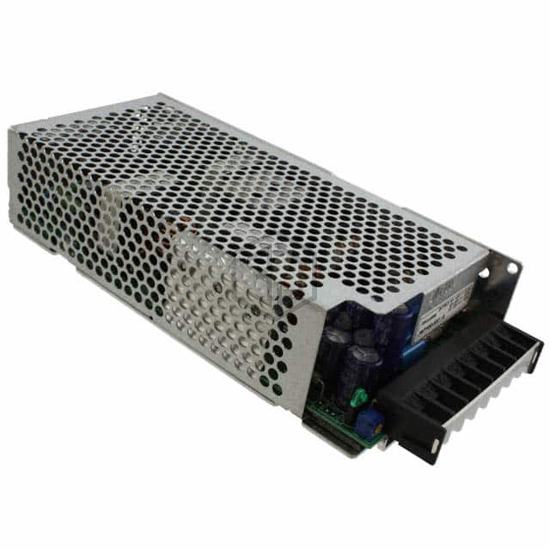

AC/DC CONVERTER 5V +/-12V 75W
JWT75-522 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 5V +/-12V 75W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 65°C (With Derating), voltage - input 85 ~ 265 VAC, size / dimension 7.40" L x 3.62" W x 1.65" H (188.0mm x 92.0mm x 42.0mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Open Frame |
| Number of Outputs | 3 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 8 A |
| Current - Output 2 | 4 A |
| Current - Output 3 | 500 mA |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 75W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 72% |
| Operating Temperature | -10°C ~ 65°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.40" L x 3.62" W x 1.65" H (188.0mm x 92.0mm x 42.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for JWT75-522 and get a quote within 24 hours.
