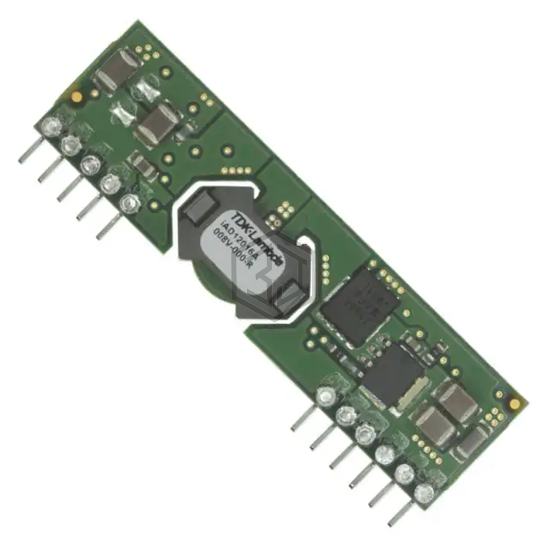

DC DC CONVERTER 0.8-5.5V 80W
IAD12016A008V-000-R is a DC DC Converters manufactured by TDK-Lambda Americas Inc. DC DC CONVERTER 0.8-5.5V 80W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case 11-SIP Module, current - output (max) 16A.
In Stock: 253
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 0.8 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 16A |
| Power (Watts) | 80 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 94% |
| Mounting Type | Through Hole |
| Package / Case | 11-SIP Module |
| Size / Dimension | 2.00" L x 0.31" W x 0.55" H (50.8mm x 7.9mm x 14.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for IAD12016A008V-000-R and get a quote within 24 hours.
