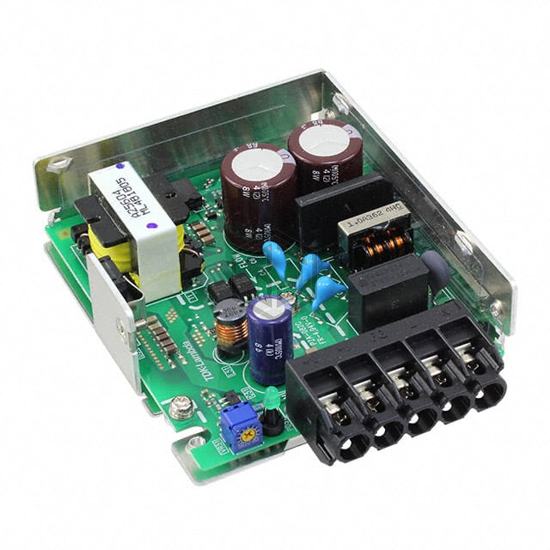

AC/DC CONVERTER 15V 30W
HWS30A-15/ME is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 15V 30W. Key specifications: mounting type Chassis Mount, operating temperature 10°C ~ 70°C (With Derating), voltage - input 85 ~ 265 VAC, size / dimension 3.74" L x 1.24" W x 3.23" H (95.0mm x 31.5mm x 82.0mm).
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 30W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 3 kV |
| Efficiency | 87% |
| Operating Temperature | 10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.74" L x 1.24" W x 3.23" H (95.0mm x 31.5mm x 82.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for HWS30A-15/ME and get a quote within 24 hours.
