AC/DC CONVERTER 15V 105W

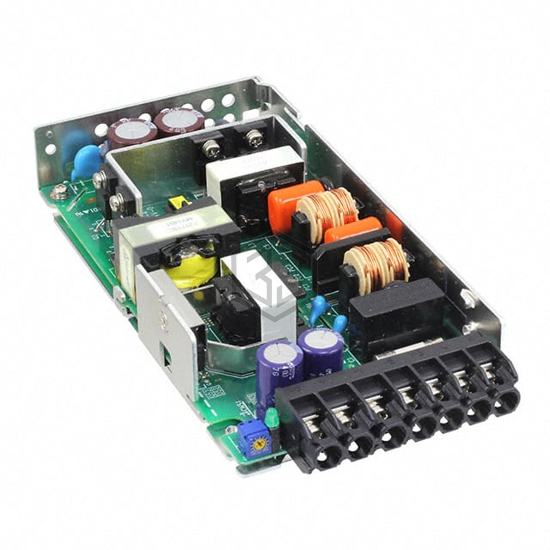

HWS100A-15/HD is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 15V 105W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 71°C (With Derating), voltage - input 85 ~ 265 VAC, 120 ~ 370 VDC, size / dimension 6.30" L x 3.23" W x 1.10" H (160.0mm x 82.0mm x 28.0mm).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame, Conformal Coated |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 265 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 7 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 105W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 88% |
| Operating Temperature | -10°C ~ 71°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.30" L x 3.23" W x 1.10" H (160.0mm x 82.0mm x 28.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for HWS100A-15/HD and get a quote within 24 hours.
