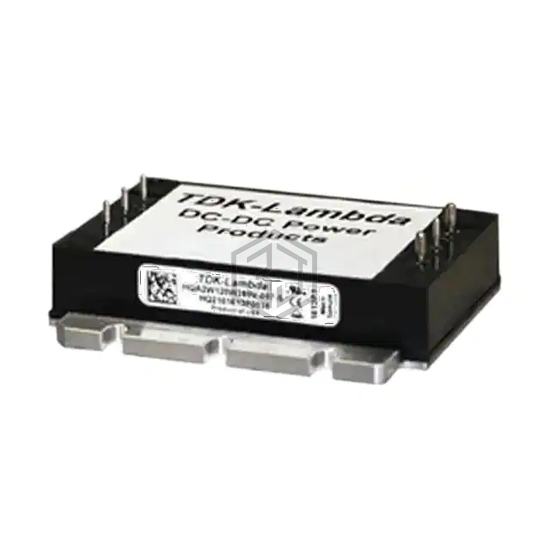

DC-DC CONVERTER 3.3V 85W
HQA2W085W033V-N07-S is a DC DC Converters manufactured by TDK-Lambda Americas Inc. DC-DC CONVERTER 3.3V 85W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 115°C, package / case Quarter Brick, current - output (max) 25A.
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 40V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 25A |
| Power (Watts) | 83 W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 115°C |
| Efficiency | 84% |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.39" L x 1.56" W x 0.50" H (60.6mm x 39.5mm x 12.7mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | CE, CSA, UL |
| Standard Number | 60950-1; 62368-1 |
