DC DC CONVERTER 48V 120W

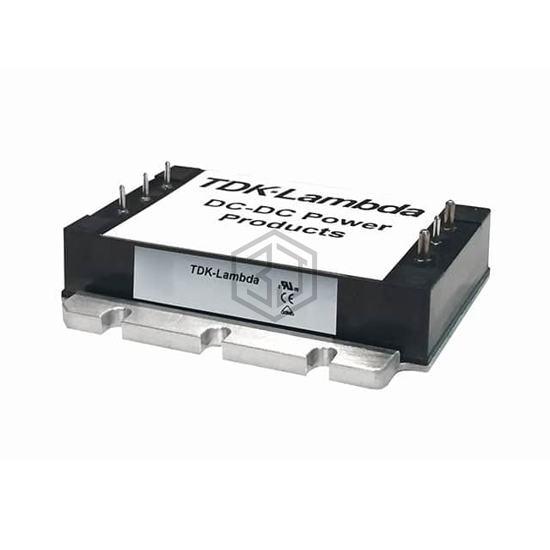

HQA24120W480V-007-S is a DC DC Converters manufactured by TDK-Lambda Americas Inc. DC DC CONVERTER 48V 120W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 115°C, package / case Quarter Brick, current - output (max) 2.5A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 40V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 120 W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP |
| Operating Temperature | -40°C ~ 115°C |
| Efficiency | 91.5% |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.39" L x 2.20" W x 0.50" H (60.6mm x 55.9mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for HQA24120W480V-007-S and get a quote within 24 hours.
