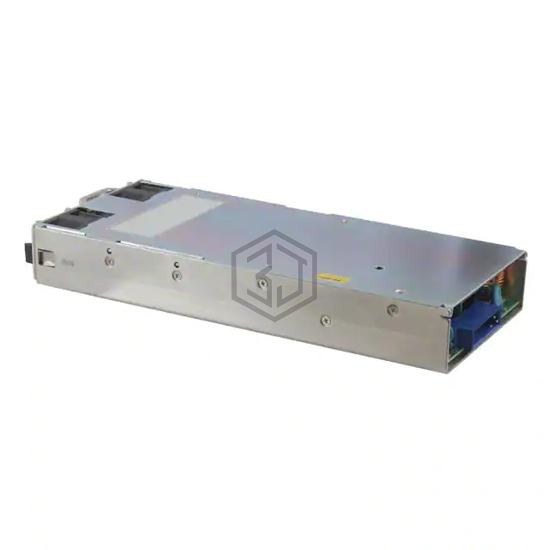

AC/DC CONVERTER 32V 1000W
FPS1000-32 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 32V 1000W. Key specifications: mounting type Rack Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 85 ~ 265 VAC, 120 ~ 360 VDC, size / dimension 11.42" L x 5.00" W x 1.61" H (290.0mm x 127.0mm x 41.0mm).
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Front End |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 265 VAC, 120 ~ 360 VDC |
| Voltage - Output 1 | 32V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 31 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 1000W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 87% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input |
| Mounting Type | Rack Mount |
| Size / Dimension | 11.42" L x 5.00" W x 1.61" H (290.0mm x 127.0mm x 41.0mm) |
| Approval Agency | CE |
| Standard Number | - |
