AC/DC CONVERTER 18V 300W

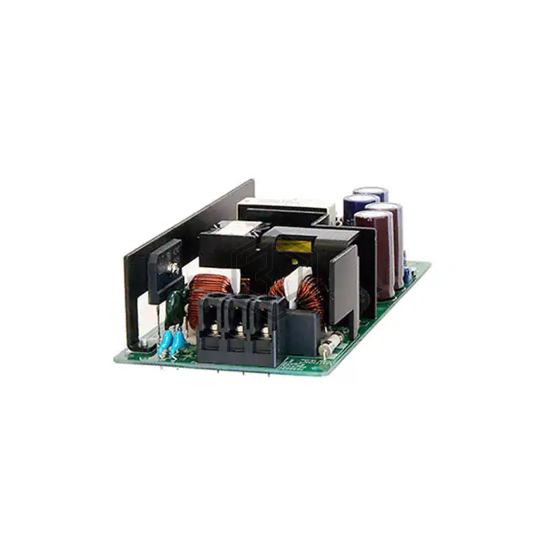

EVS18-16R7 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 18V 300W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 85 ~ 265 VAC, size / dimension 7.09" L x 3.31" W x 1.65" H (180.0mm x 84.0mm x 42.0mm).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 18V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 16.7 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 300W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 89% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.09" L x 3.31" W x 1.65" H (180.0mm x 84.0mm x 42.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for EVS18-16R7 and get a quote within 24 hours.
