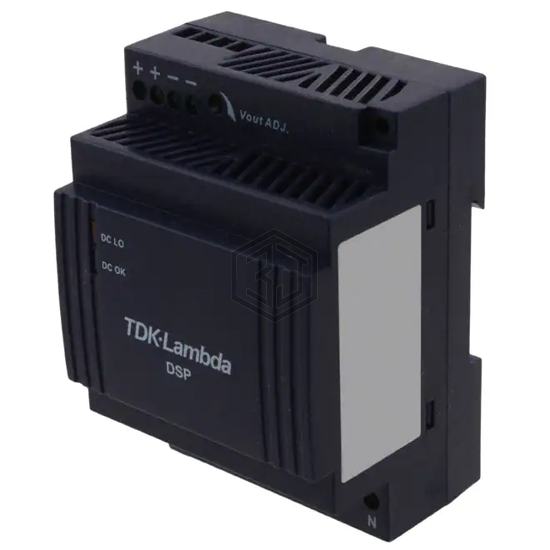

AC/DC CONVERTER 5V 60W
DSP60-5 is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 5V 60W. Key specifications: operating temperature -25°C ~ 71°C (With Derating), current - output (max) 7A, size / dimension 2.19" L x 2.80" W x 3.58" H (55.6mm x 71.0mm x 90.9mm), number of outputs 1.
In Stock: 180
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 7A |
| Power (Watts) | 60W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 80% |
| Operating Temperature | -25°C ~ 71°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 2.19" L x 2.80" W x 3.58" H (55.6mm x 71.0mm x 90.9mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for DSP60-5 and get a quote within 24 hours.
