AC/DC CONVERTER 24V 30W

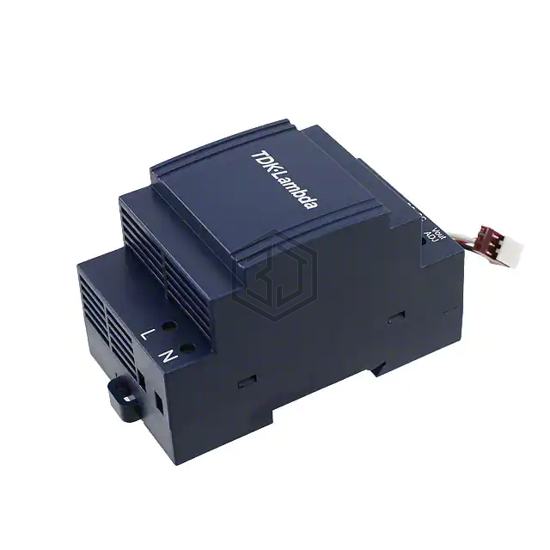

DSP30-24/277A2 is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 24V 30W. Key specifications: operating temperature -25°C ~ 71°C (With Derating), current - output (max) 1.25A, size / dimension 2.19" L x 2.09" W x 3.76" H (55.6mm x 53.1mm x 95.5mm), number of outputs 1.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 304 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 1.25A |
| Power (Watts) | 30W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -25°C ~ 71°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 2.19" L x 2.09" W x 3.76" H (55.6mm x 53.1mm x 95.5mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for DSP30-24/277A2 and get a quote within 24 hours.
