AC/DC CONVERTER 24V 88W

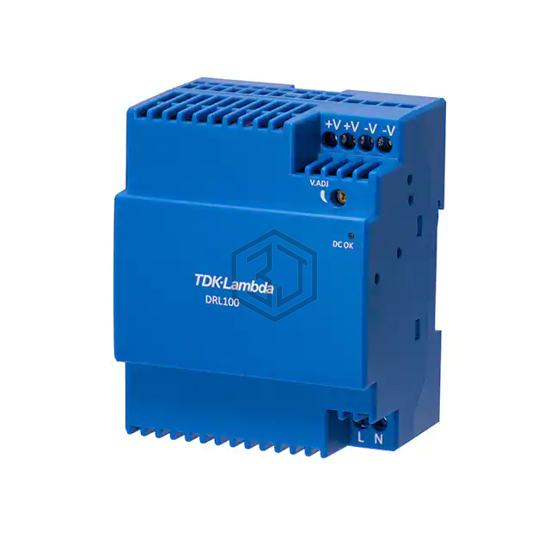

DRL100-24-1/C2 is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 24V 88W. Key specifications: operating temperature -20°C ~ 71°C (With Derating), current - output (max) 4.2A, size / dimension 2.19" L x 2.83" W x 3.58" H (55.6mm x 72.0mm x 90.9mm), number of outputs 1.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 373V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 4.2A |
| Power (Watts) | 101W |
| Voltage - Isolation | 3 kV |
| Applications | Hazardous Locations, ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -20°C ~ 71°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 2.19" L x 2.83" W x 3.58" H (55.6mm x 72.0mm x 90.9mm) |
| Approval Agency | CE |
| Standard Number | - |
