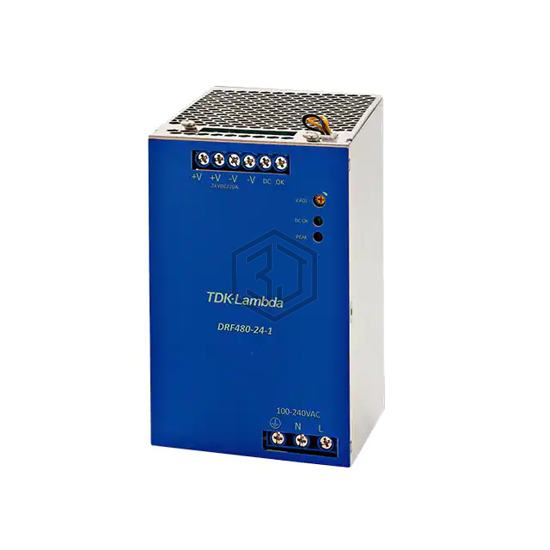

AC/DC CONVERTER 24V 480W
DRF480-24-1/HL is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 24V 480W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 4.53" L x 3.23" W x 4.86" H (115.0mm x 82.0mm x 123.4mm), number of outputs 1.
In Stock: 6,907
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 125V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial), Hazardous Locations |
| Efficiency | 94% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, PFC, Remote On/Off, Universal Input |
| Size / Dimension | 4.53" L x 3.23" W x 4.86" H (115.0mm x 82.0mm x 123.4mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for DRF480-24-1/HL and get a quote within 24 hours.
