AC/DC CONVERTER 12V 50W

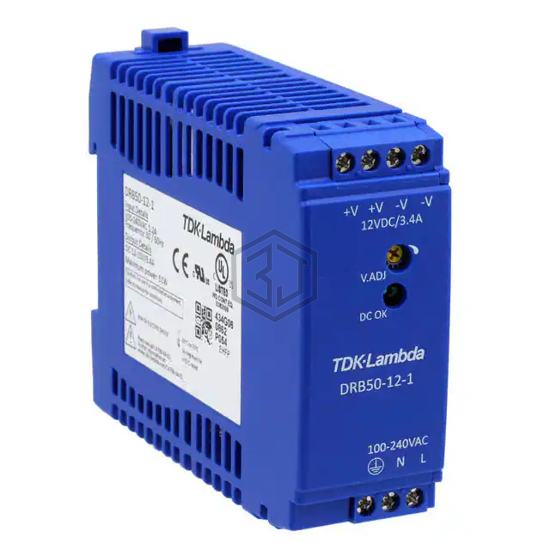

DRB50-12-1 is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 12V 50W. Key specifications: operating temperature -20°C ~ 70°C (With Derating), current - output (max) 3.4A, size / dimension 3.54" L x 1.18" W x 2.95" H (90.0mm x 30.0mm x 75.0mm), number of outputs 1.
In Stock: 527
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 120V |
| DC Voltage - Input (Max) | 373V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 3.4A |
| Power (Watts) | 50W |
| Voltage - Isolation | 3 kV |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 3.54" L x 1.18" W x 2.95" H (90.0mm x 30.0mm x 75.0mm) |
| Approval Agency | CE, cULus, cURus |
| Standard Number | - |
Submit your RFQ for DRB50-12-1 and get a quote within 24 hours.
