AC/DC CONVERTER 48V 480W

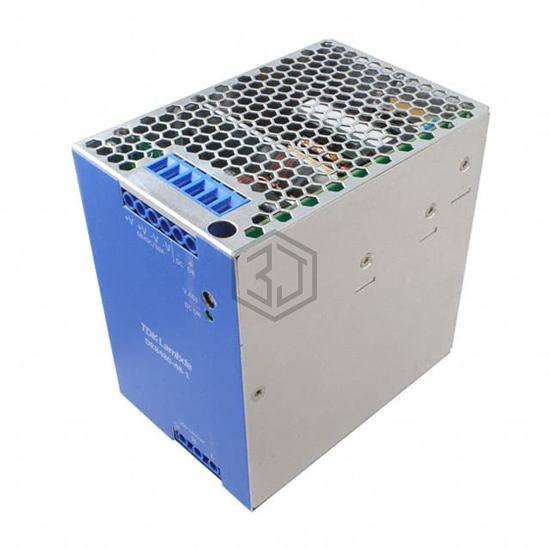

DRB480-48-1 is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 48V 480W. Key specifications: operating temperature -20°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 4.92" L x 3.31" W x 4.88" H (125.0mm x 84.0mm x 124.0mm), number of outputs 1.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 480W |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 92% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Size / Dimension | 4.92" L x 3.31" W x 4.88" H (125.0mm x 84.0mm x 124.0mm) |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for DRB480-48-1 and get a quote within 24 hours.
