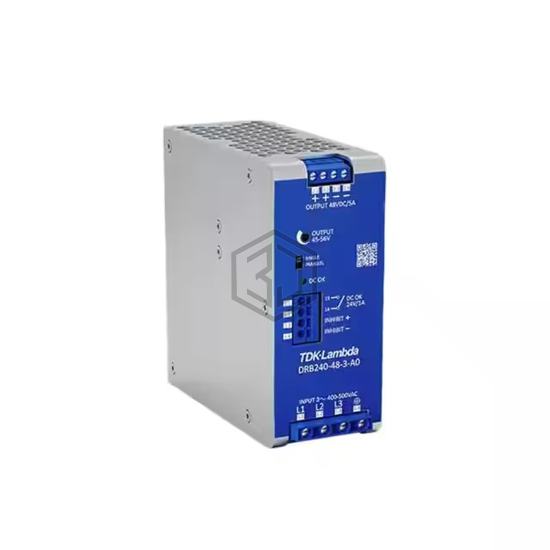

AC/DC CONVERTER 48V 240W
DRB240-48-3-A0 is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 48V 240W. Key specifications: operating temperature -25°C ~ 55°C, current - output (max) 5A, size / dimension 4.87" L x 2.17" W x 5.08" H (123.8mm x 55.2mm x 129.0mm), number of outputs 1.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 350 ~ 575 VAC (3 Phase) |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 240W |
| Voltage - Isolation | 3.51 kV |
| Applications | ITE (Commercial), Laboratory |
| Efficiency | 93.8% |
| Operating Temperature | -25°C ~ 55°C |
| Features | Adjustable Output, PFC, Remote On/Off, Remote Sense |
| Size / Dimension | 4.87" L x 2.17" W x 5.08" H (123.8mm x 55.2mm x 129.0mm) |
| Approval Agency | CE |
| Standard Number | 61010-1;60950-1;62368-1 |
Submit your RFQ for DRB240-48-3-A0 and get a quote within 24 hours.
