AC-DC, DIN RAIL, INPUT 115/230VA

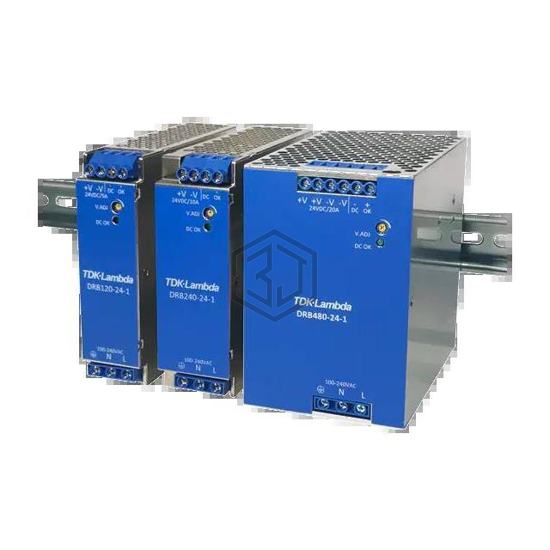

DRB120-12-1 is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. AC-DC, DIN RAIL, INPUT 115/230VA. Key specifications: operating temperature -25°C ~ 70°C, current - output (max) 10A, size / dimension 4.92" L x 4.88" W x 1.38" H (125.0mm x 124.0mm x 35.0mm), number of outputs 1.
In Stock: 5,011
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 120W |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 91% |
| Operating Temperature | -25°C ~ 70°C |
| Features | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input |
| Size / Dimension | 4.92" L x 4.88" W x 1.38" H (125.0mm x 124.0mm x 35.0mm) |
| Approval Agency | - |
| Standard Number | 60950-1; 62368-1; UL 508 |
Submit your RFQ for DRB120-12-1 and get a quote within 24 hours.
