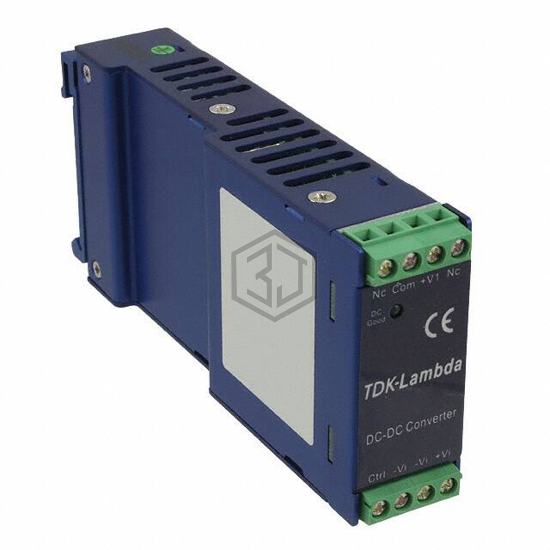

DC/DC CONVERTER 5V 20W
DPX20-24WS05 is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. DC/DC CONVERTER 5V 20W. Key specifications: operating temperature -40°C ~ 95°C, current - output (max) 4A, size / dimension 4.92" L x 2.27" W x 0.97" H (125.0mm x 57.6mm x 24.5mm), number of outputs 1.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 9.5V |
| DC Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | 20W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 86% |
| Operating Temperature | -40°C ~ 95°C |
| Features | - |
| Size / Dimension | 4.92" L x 2.27" W x 0.97" H (125.0mm x 57.6mm x 24.5mm) |
| Approval Agency | CE |
| Standard Number | - |
