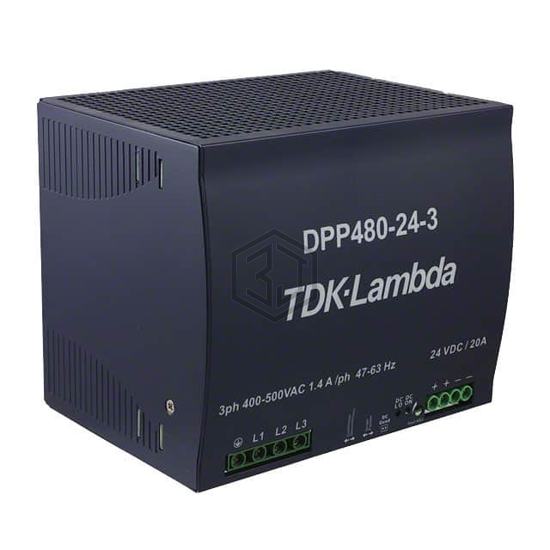

AC/DC CONVERTER 24V 480W
DPP480-24-3 is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 24V 480W. Key specifications: operating temperature -40°C ~ 71°C (With Derating), current - output (max) 20A, size / dimension 4.68" L x 5.91" W x 4.88" H (118.9mm x 150.1mm x 124.0mm), number of outputs 1.
In Stock: 5,162
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 340 ~ 575 VAC (3 Phase) |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -40°C ~ 71°C (With Derating) |
| Features | Adjustable Output, Load Sharing |
| Size / Dimension | 4.68" L x 5.91" W x 4.88" H (118.9mm x 150.1mm x 124.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for DPP480-24-3 and get a quote within 24 hours.
