AC/DC CONVERTER 24V 480W

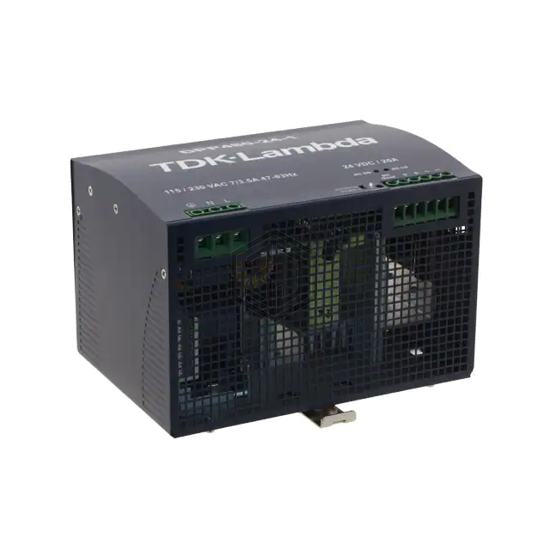

DPP480-24-1 is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 24V 480W. Key specifications: operating temperature -10°C ~ 71°C (With Derating), current - output (max) 20A, size / dimension 4.57" L x 6.89" W x 4.92" H (116.0mm x 175.0mm x 125.0mm), number of outputs 1.
In Stock: 6,175
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 132 VAC, 176 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 89% |
| Operating Temperature | -10°C ~ 71°C (With Derating) |
| Features | Adjustable Output, Load Sharing, Universal Input |
| Size / Dimension | 4.57" L x 6.89" W x 4.92" H (116.0mm x 175.0mm x 125.0mm) |
| Approval Agency | CE |
| Standard Number | - |
