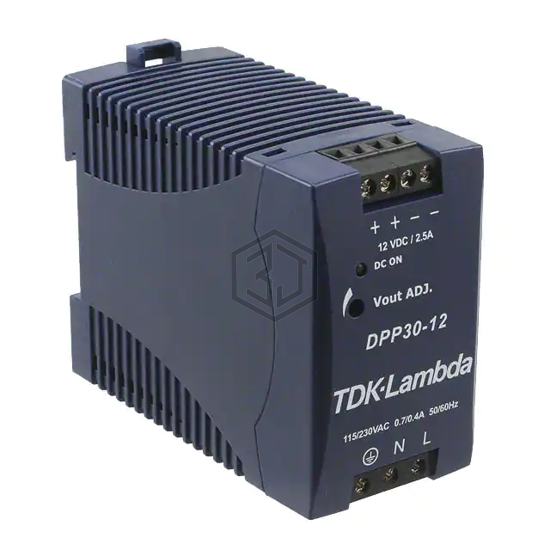

AC/DC CONVERTER 12V 30W
DPP30-12 is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 12V 30W. Key specifications: operating temperature -10°C ~ 71°C (With Derating), current - output (max) 2.5A, size / dimension 3.58" L x 1.77" W x 2.95" H (90.9mm x 45.0mm x 74.9mm), number of outputs 1.
In Stock: 67
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 132 VAC, 176 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 30W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 83% |
| Operating Temperature | -10°C ~ 71°C (With Derating) |
| Features | Adjustable Output, Load Sharing, Universal Input |
| Size / Dimension | 3.58" L x 1.77" W x 2.95" H (90.9mm x 45.0mm x 74.9mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for DPP30-12 and get a quote within 24 hours.
