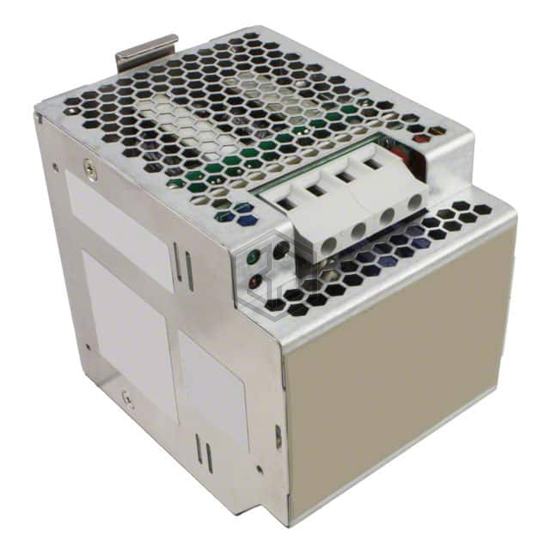

AC/DC CONVERTER 24V 180W
DLP180-24-1/E is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 24V 180W. Key specifications: operating temperature -10°C ~ 60°C (With Derating), current - output (max) 7.5A, size / dimension 4.33" L x 3.15" W x 3.82" H (110.0mm x 80.0mm x 97.0mm), number of outputs 1.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 132 VAC, 170 ~ 265 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 7.5A |
| Power (Watts) | 180W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 4.33" L x 3.15" W x 3.82" H (110.0mm x 80.0mm x 97.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for DLP180-24-1/E and get a quote within 24 hours.
