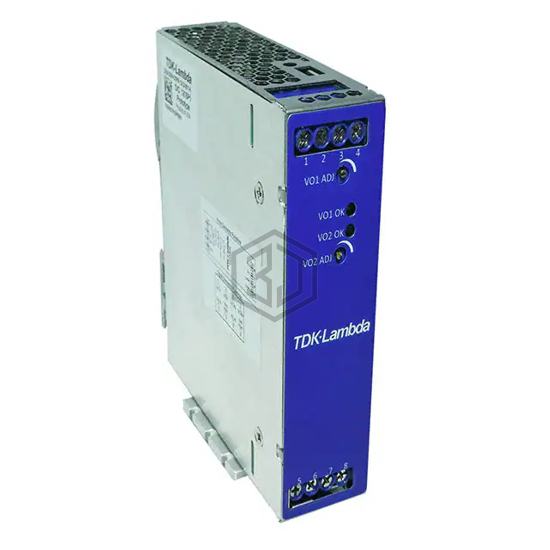

DC DC CONVERTER 12V, 5V 500W
DDA500N-D2PP-1205-001 is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. DC DC CONVERTER 12V, 5V 500W. Key specifications: operating temperature -40°C ~ 100°C, current - output (max) 20A, 20A, size / dimension 4.53" L x 1.44" W x 4.86" H (115.1mm x 36.6mm x 123.4mm), number of outputs 2.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 2 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 9V |
| DC Voltage - Input (Max) | 53V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A, 20A |
| Power (Watts) | 500W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 95% |
| Operating Temperature | -40°C ~ 100°C |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Size / Dimension | 4.53" L x 1.44" W x 4.86" H (115.1mm x 36.6mm x 123.4mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for DDA500N-D2PP-1205-001 and get a quote within 24 hours.
