DC DC CONVERTER +/-12V 325W

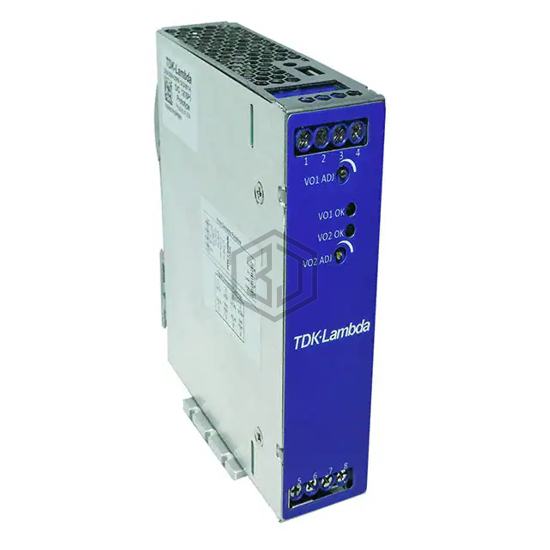

DDA325N-D2PN-1212-001 is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. DC DC CONVERTER +/-12V 325W. Key specifications: operating temperature -40°C ~ 100°C, current - output (max) 14A, 8A, size / dimension 4.53" L x 1.44" W x 4.86" H (115.1mm x 36.6mm x 123.4mm), number of outputs 2.
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 2 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 9V |
| DC Voltage - Input (Max) | 40V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 14A, 8A |
| Power (Watts) | 325W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 94% |
| Operating Temperature | -40°C ~ 100°C |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Size / Dimension | 4.53" L x 1.44" W x 4.86" H (115.1mm x 36.6mm x 123.4mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for DDA325N-D2PN-1212-001 and get a quote within 24 hours.
