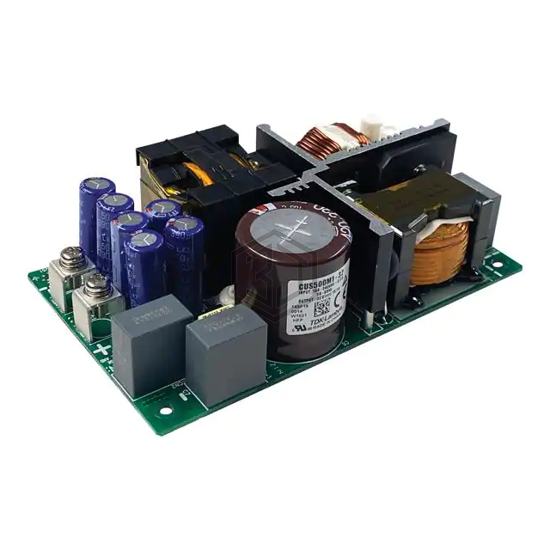

AC/DC CONVERTER 36V 299W
CUS500M1-36 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 36V 299W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 85 ~ 265 VAC, size / dimension 5.00" L x 3.00" W x 1.46" H (127.0mm x 76.2mm x 37.1mm).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 36V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 8.3 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 299W (500W Forced Air) |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 96% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.46" H (127.0mm x 76.2mm x 37.1mm) |
| Approval Agency | CE |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for CUS500M1-36 and get a quote within 24 hours.
