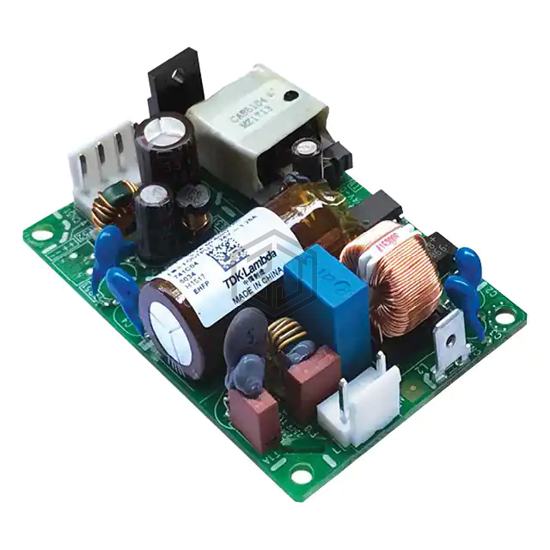

AC/DC CONVERTER 48V 30W
CUS30M-48 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 48V 30W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 85 ~ 265 VAC, size / dimension 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.1mm).
In Stock: 29
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 630 mA |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 30W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 90% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | PFC, Remote Sense |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.1mm) |
| Approval Agency | CE |
| Standard Number | - |
