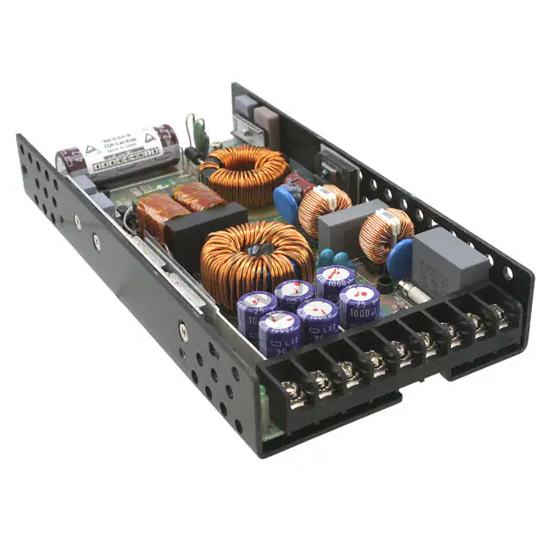

AC/DC CONVERTER 12V 250W
CUS250LD-12 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 12V 250W. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 70°C (With Derating), voltage - input 85 ~ 265 VAC, size / dimension 7.80" L x 4.00" W x 1.18" H (198.0mm x 102.0mm x 30.0mm).
In Stock: 43
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Open Frame, Conformal Coated |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 265 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 21 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 250W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 90% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.80" L x 4.00" W x 1.18" H (198.0mm x 102.0mm x 30.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for CUS250LD-12 and get a quote within 24 hours.
