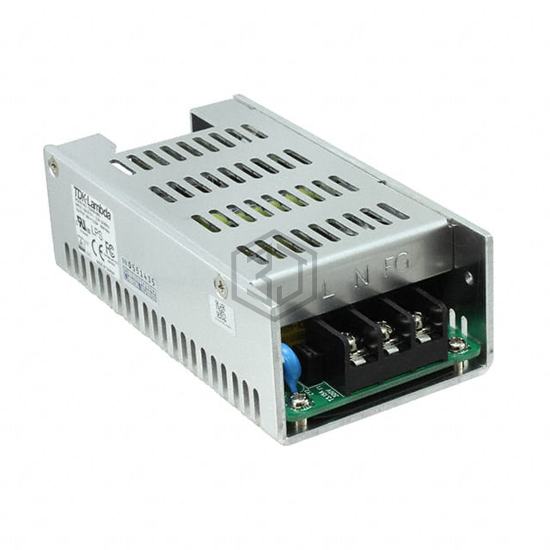

AC/DC CONVERTER 5V 40W
CSW65-5/D is a Industrial, DIN Rail Power Supplies manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 5V 40W. Key specifications: operating temperature -10°C ~ 70°C (With Derating), current - output (max) 8A, size / dimension 4.75" L x 2.50" W x 1.50" H (120.7mm x 63.5mm x 38.1mm), number of outputs 1.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 305 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 8A |
| Power (Watts) | 40W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 87.2% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | - |
| Size / Dimension | 4.75" L x 2.50" W x 1.50" H (120.7mm x 63.5mm x 38.1mm) |
| Approval Agency | CE |
| Standard Number | - |
