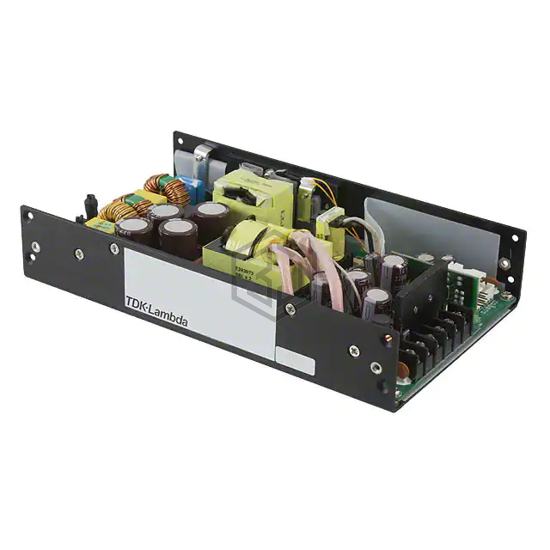

AC/DC CONVERTER 30V 360W
CSS500-30/I is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 30V 360W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 9.00" L x 4.70" W x 1.63" H (228.6mm x 119.4mm x 41.4mm).
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 30V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 12 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 360W (500W Forced Air) |
| Applications | Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 87% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 9.00" L x 4.70" W x 1.63" H (228.6mm x 119.4mm x 41.4mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for CSS500-30/I and get a quote within 24 hours.
