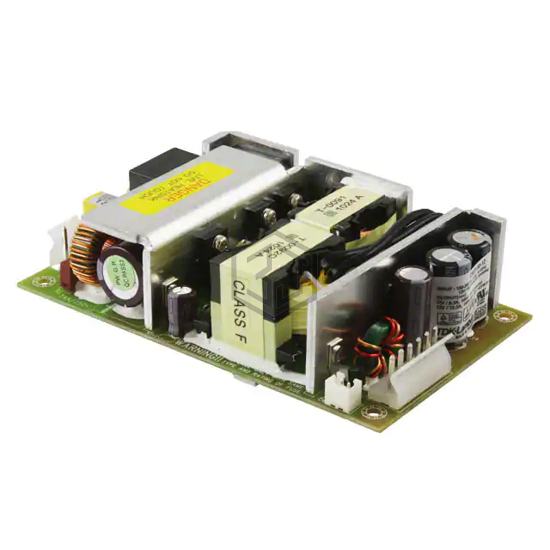

AC/DC CONVERTER 12V 100W
CSS150-12 is a AC DC Converters manufactured by TDK-Lambda Americas Inc. AC/DC CONVERTER 12V 100W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm).
In Stock: 544
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 8.3 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 100W (150W Forced Air) |
| Applications | Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 89% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | DC Input Capable, Remote On/Off, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for CSS150-12 and get a quote within 24 hours.
